Scope of Application
Applied to illumination in outdoor places such as ships, dock ports, steeplecases, and stadiums.
| Attribute | LM-FC-80-A01S | LM-FC-150-A01S | LM-FC-250-A01S | LM-FC-300-A01S | LM-FC-400-A01S | LM-FC-500-A01S |
|---|---|---|---|---|---|---|
| Voltage | AC110V~260V | |||||
| Power | 80W | 150W | 250W | 300W | 400W | 500W |
| Number of Modules | 1PS | 2PS | 3PS | 4PS | 5PS | 6PS |
| Power Factor | ≥0.9 | |||||
| Illuminant | LED | |||||
| Light Effect | 120lm/W | |||||
| Color Rendering Index | ≥80 | |||||
| Color Temperature | 2700K~6500K | |||||
| Protection Class | IP66 | |||||
| Installation Way | Scan-mounted Type, Wall-mounted Type, Ceiling-mounted Type | |||||
| Ambient Temperature | -35°C ~ +55°C | |||||
| Lamp Body Material | Stainless Steel 316L / High Quality Marine Aluminum Alloy | |||||
| Lamp Shade Material | Engineering Plastics PC | |||||
| Weight | 3.7kg | 4.4kg | 5.4kg | 6.8kg | 8.6kg | 10.5kg |
Scope of Application
Applied to illumination in outdoor places such as ships, dock ports, steeplecases, and stadiums.

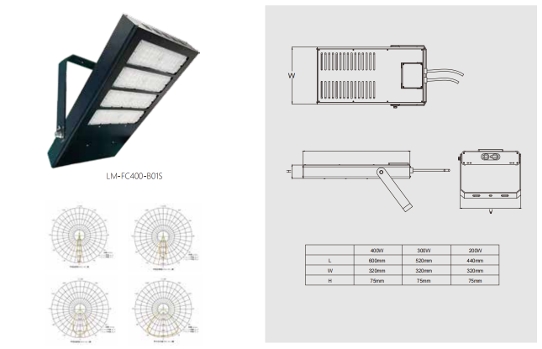

| Attribute | LM-FC200-B01S | LM-FC300-B01S | LM-FC400-B01S |
|---|---|---|---|
| Voltage | AC110V~260V | ||
| Power | 200W | 300W | 400W |
| Number of Modules | 2PS | 3PS | 4PS |
| Power Factor | ≥0.9 | ||
| Illuminant | LED | ||
| Light Effect | 120lm/W | ||
| Color Rendering Index | ≥80 | ||
| Color Temperature | 2700K~6500K | ||
| Protection Class | IP66 | ||
| Installation Way | Scan-mounted Type, Wall-mounted Type, Ceiling-mounted Type | ||
| Ambient Temperature | -35°C ~ +55°C | ||
| Lamp Body Material | Stainless Steel 316L / High Quality Marine Aluminum Alloy | ||
| Lamp Shade Material | Engineering Plastics PC | ||
| Weight | 7.5kg | 8.5kg | 10.5kg |
| Remarks | Equipped with junction box | ||
The Scope of Application
Applied to side laundry room, bathroom, conference room, control room, lounge and etc. in various types of ships, offshore platforms and luxury cruise.

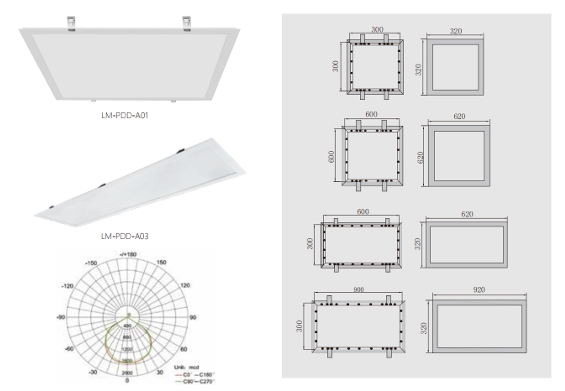

| Attribute | LM-PDD-A01 | LM-PDD-A02 | LM-PDD-A03 | LM-PDD-A04 |
|---|---|---|---|---|
| Type | LM-PDD-A01 | LM-PDD-A02 | LM-PDD-A03 | LM-PDD-A04 |
| Voltage | AC110V-220V DC10-30V | AC110V-220V DC10-30V | AC110V-220V DC10-30V | AC110V-220V DC10-30V |
| Opening | 300×300mm | 600×600mm | 300×600mm | 300×600mm |
| Power | 15W | 40W | 20W | 40W |
| Power Factor | ≥0.9 | |||
| Illuminant | LED | |||
| Light Effect | 100Lm/W | 100Lm/W | 100Lm/W | 100Lm/W |
| Color Rendering Index | ≥80 | |||
| Color Temperature | 2700K~6500K | |||
| Protection Class | IP43 | |||
| Installation Way | Snap-in Type | |||
| Ambient Temperature | -35°C to +55°C | |||
| Lamp Body Material | High Quality Marine Aluminium Alloy | |||
| Lamp Shade Material | Engineering Plastics PC | |||
| Weight | 2.5kg | 4.1kg | 3.2kg | 3.7kg |
